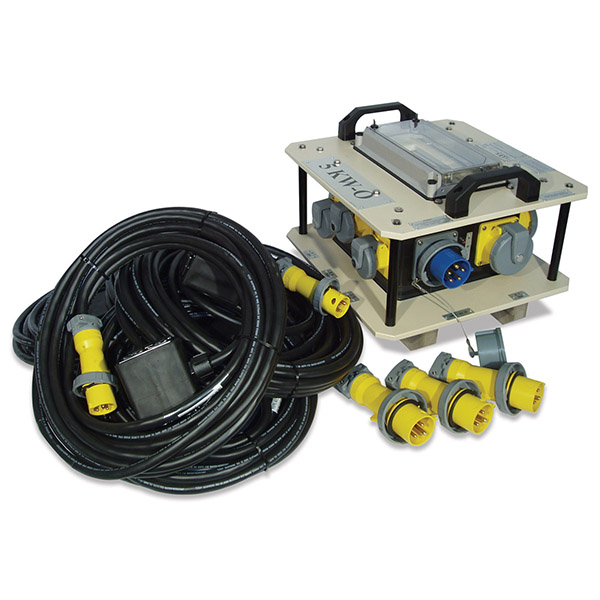

USMC MEPDIS-R 5kW Outdoor Box with Cord Sets and Spare Plugs

MEPDIS-R distribution assembly supplied with six 50 ft cord sets. See the input, output and scope-of-supply details below.

Part numberDB-30NA-A22-S3

Manufacturer, product and reference are included automatically. Add more products before submitting.

Product specifications

Product family: USMC MEPDIS-R
Enclosure: Molded rubber with HDPE top and bottom
Supply voltage: 208Y/120 V, three-phase
Inputs: 1 × 30 A, three-phase IEC pin-and-sleeve
Distribution outputs: 6 × 20 A and 3 × 30 A, 120 V single-phase IEC pin-and-sleeve
Dimensions (H × W × D): 14 × 19 × 19 in
Weight: 52.38 lb
Included cord sets: 6 × 50 ft extension cords, each terminating in two duplex receptacles
Included spare plugs: 3 × 30 A single-phase plugs
Supply confirmation: Feeder cables, adapters and additional accessories are specified in the Primex quotation.
NSN: 6110-01-532-1821

Final configuration, compatibility, availability and lead time are confirmed in Primex’s quotation.
