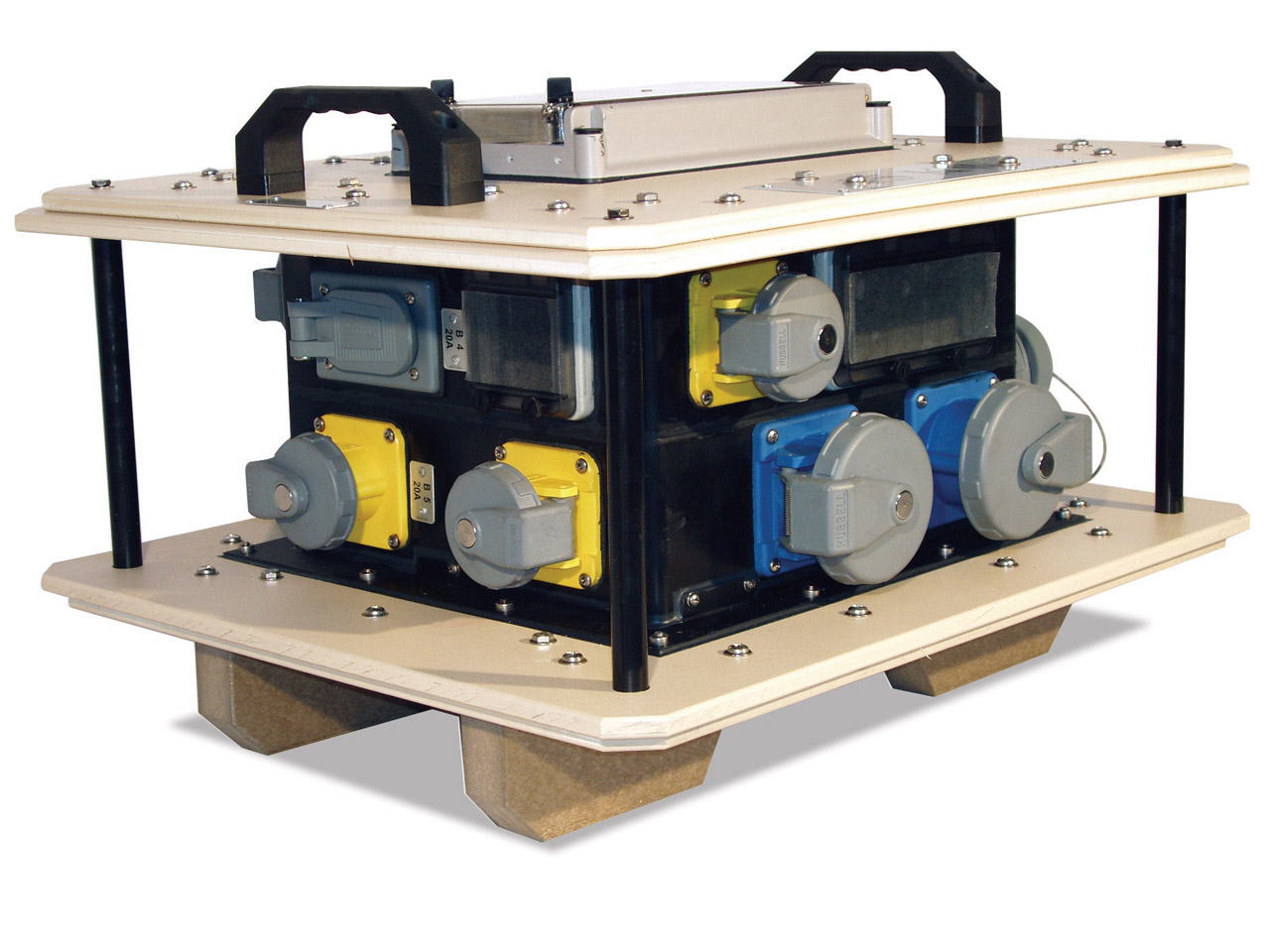

USMC MEPDIS-R 15kW Distribution Box

MEPDIS-R power distribution assembly with protected branch circuits and a 120 V GFCI convenience outlet. See the connector schedule, dimensions and weight below.

Part numberDB-60MA-F22QS3

Manufacturer, product and reference are included automatically. Add more products before submitting.

View catalogue on Primex

Product specifications

Product family: USMC MEPDIS-R
Enclosure: Molded rubber with HDPE top and bottom
Supply voltage: 208Y/120 V, three-phase
Inputs: 2 × 60 A, three-phase IEC pin-and-sleeve; parallel input arrangement
Distribution outputs: 4 × 30 A three-phase and 4 × 20 A single-phase IEC pin-and-sleeve
Dimensions (H × W × D): 17 × 26 × 23 in
Weight: 90 lb
Convenience outlet: 1 × 20 A, 120 V GFCI duplex receptacle
Supply confirmation: Feeder cables, adapters and additional accessories are specified in the Primex quotation.
NSN: 6110-01-532-1764

Final configuration, compatibility, availability and lead time are confirmed in Primex’s quotation.
