LEX Products

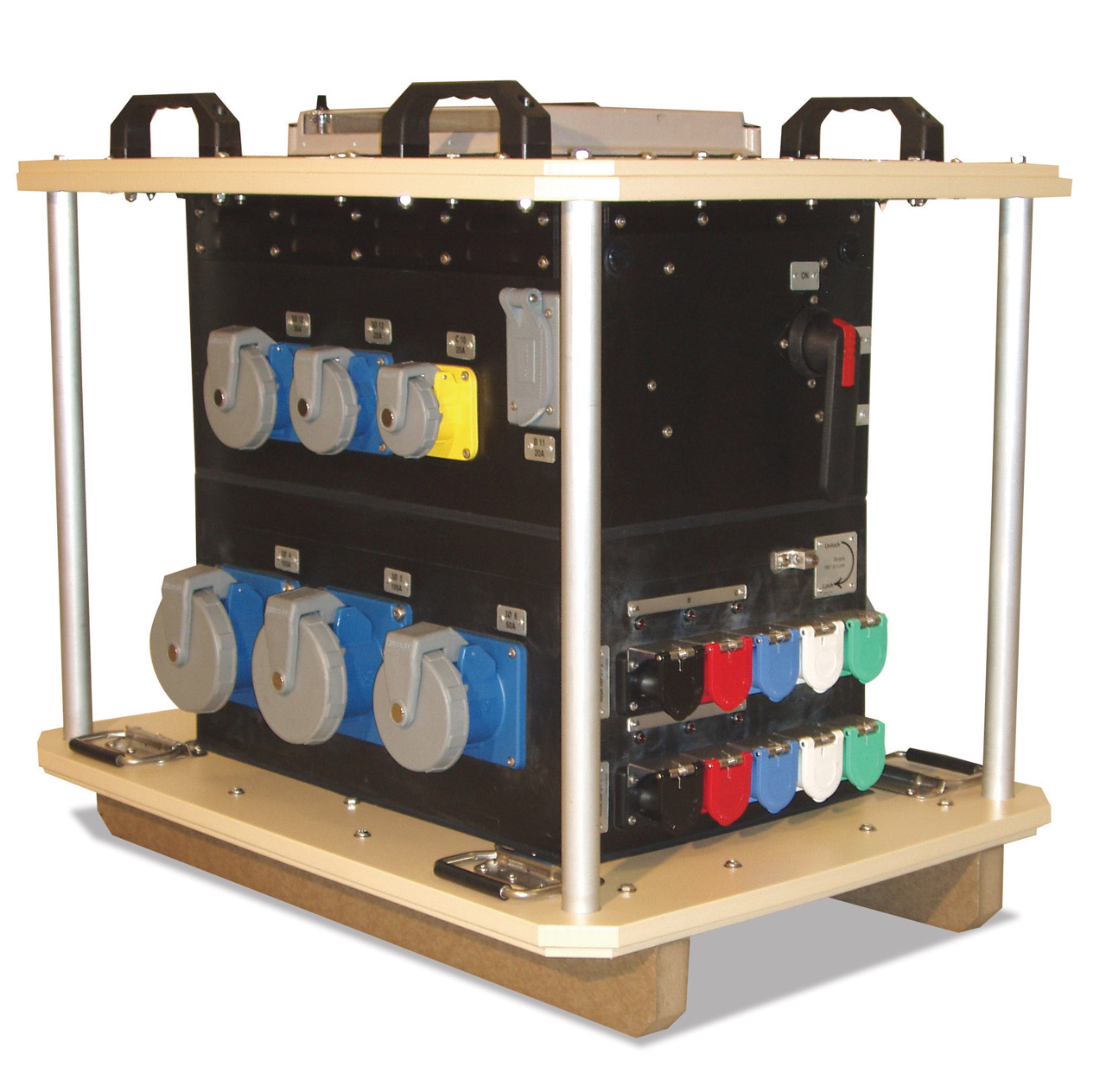

USMC MEPDIS-R 100kW Distribution Box

MEPDIS-R power distribution assembly with protected branch circuits and a 120 V GFCI convenience outlet. See the connector schedule, dimensions and weight below.

Part numberDB350MA-P2WAS3

Manufacturer, product and reference are included automatically. Add more products before submitting.

View catalogue on Primex

Product specifications

Product family: USMC MEPDIS-R
Enclosure: Molded rubber with HDPE top and bottom
Supply voltage: 208Y/120 V, three-phase
Inputs: 2 × 400 A Series 16 cam-type input sets; parallel input arrangement
Distribution outputs: 1 × 200 A cam-type output set; 4 × 100 A, 2 × 60 A, 2 × 30 A and 2 × 20 A three-phase IEC outputs; 2 × 20 A single-phase IEC outputs
Dimensions (H × W × D): 32 × 36 × 26 in
Weight: 306 lb
Convenience outlet: 1 × 20 A, 120 V GFCI duplex receptacle
Conductors: Three phases (L1, L2, L3), neutral and protective ground — five conductors
Supply confirmation: Feeder cables, adapters and additional accessories are specified in the Primex quotation.
NSN: 6110-01-532-1835

Final configuration, compatibility, availability and lead time are confirmed in Primex’s quotation.
